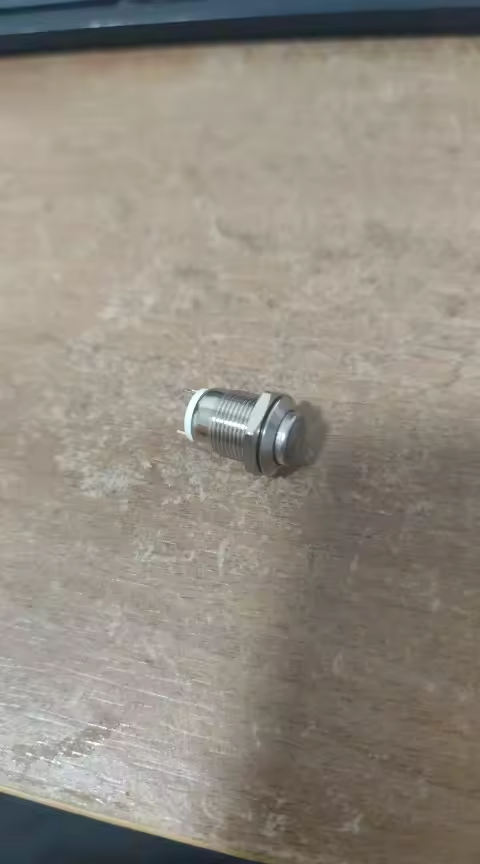

Momentary push-button switch, 12V 5A waterproof, chrome-plated, stainless, metal

1 piece waterproof button, momentary stainless steel button, On/Off, 12mm, 2A, 12V/24V/125V/250V

Features:

• 1 piece metal push-button with IP65 protection: waterproof and rustproof, can be used in wet or dusty environments.

• Button mounting hole diameter: 12 mm, button thread: 0.75 mm. Momentary type: press & hold – ON, release – OFF.

• Widely used: Ideal for horn buttons, PC power buttons, etc.

• 12 mm push-button type: Facilitates installation and removal.

Product description:

* Product name: Waterproof and rustproof momentary push-button

* Color: Silver

* Material: Nickel-plated brass + stainless steel

* Head shape: high head

* Head diameter: 9/16" (14 mm)

* Mounting hole size: 1/2" (12 mm)

* Push-button thread: 0.75 mm

* Connection type: 2 pins, solder connection

* Operation type: Momentary

* Switch rating: 2A/12V/24V/125V/250V

* Protection class: IP65, IK10

* Operating temperature: -20℃ to +55℃

* Contact resistance: ≤50mΩ

* Insulation resistance: ≥1000 MΩ

* Mechanical life: >500,000 cycles

* Electrical life: >50,000 cycles

Scope of delivery:

1×Metal push-button
